CO2 Laser Cutting
Acrylic · Wood · Engineering Plastics
Precision CO2 laser cutting and engraving on acrylic, MDF, plywood, ABS, polycarbonate, leather, fabric and paper. ±0.1 mm accuracy, fire-polished edges, no tooling cost.

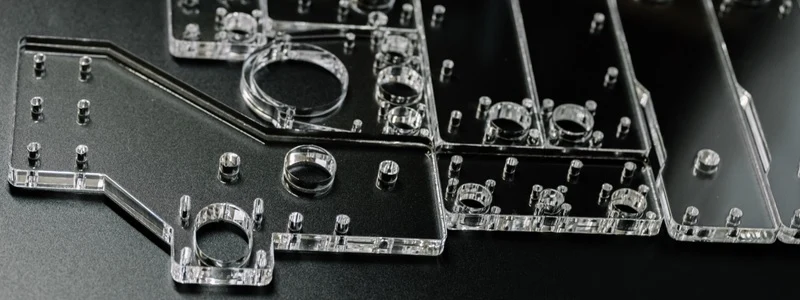

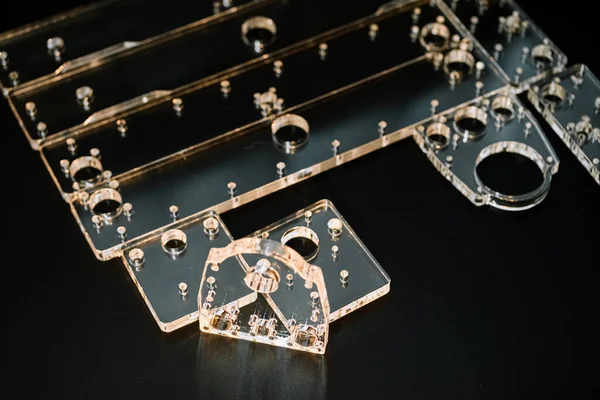

CO2 Laser Examples
Precision cuts and engraving on acrylic, wood and plastics.
Why CO2 Laser?
Sub-mm Precision
Repeatable to ±0.1 mm. Sharp internal corners and fine details that mechanical cutters cannot match.
Fire-Polished Acrylic Edge
Acrylic edges emerge clear, polished and ready to use — no edge sanding or flame polishing required.
No Tooling Cost
Vector files drive directly — no dies, no plates. Single prototypes are routine.
Wide Material Range
Acrylic, MDF, plywood, ABS, polycarbonate, leather, fabric and paper — same machine, different settings.
Engrave + Cut in One Pass
Vector cut and raster engrave combined — branding, serial numbers and decoration in a single operation.
Up to 10 mm Acrylic
Production cutting up to 10 mm cast acrylic; thicker possible with multi-pass.
Technical Specifications
Standard technical parameters are listed in the table below. For special requirements, please fill in our quote form.
| Property | Standard Value / Option | Notes |
|---|---|---|
| Laser Source | CO2, 130 W | — |
| Wavelength | 10 600 nm | — |
| Working Area | 1300 × 900 mm | — |
| Max Material | 10 mm acrylic, 8 mm MDF, 5 mm plywood | Multi-pass for thicker |
| Precision | ±0.1 mm | — |
| Materials | Acrylic · MDF · plywood · ABS · PC · leather · fabric · paper | Many more |
| Lead Time | 3–7 business days | Express possible |
| MOQ | 1 piece | — |
Application Areas
About CO2 Laser Cutting
Request a CO2 Laser Quote
Send your DXF / AI / SVG — quote within 24 hours, prototypes from a single piece.
